Cartoners

About Cartoners

When your packaging looks great, so do you. That's why at Syntegon, we do everything possible to offer you the best secondary packaging solution for your application. Whether your applications require carton and tray forming or closing, we offer a solution to fit into your production line. From frozen foods, bakery, pharmaceutical and hardware products, we've got the experience and machinery to provide you with an efficient packaging solution. Although our machinery is tailored to many applications, the result is always the same - the highest quality packages you'll find anywhere.

Most cartoning equipment is rated for a particular speed and its price is dictated by the machine speed. There are many other considerations, including changeover times, coding of product, footprint and infeed types. Slower speed applications typically use intermittent cartoning machines because they are smaller and less expensive. Higher speed applications will almost always need continuous motion equipment. We represent two of the best known manufacturers of cartoning equipment - Econocorp and Syntegon Packaging.

Cartoning equipment comes in many different sizes and speeds. One of the first considerations is the type of carton you are using, either top load or side load. Some styles include:

For more information on Syntegon Top Load and End Load Cartoners, click here.


Machine Types: Top Load

Review this section for carton formers, carton erectors, tray formers, tray erectors, tray makers, and Econocorp,

The premier intermittent motion cartoning machinery manufacturer in the United States is Econocorp. Econocorp specializes in moderate speed, quick change, simple machinery designed for plants that are growing and need to get away from hand erecting/gluing cartons.

Carton Styles: Top Load

There are many other top load style blanks we have worked with over the years. If you don't see your desired box type, please contact us. Chances are we have the equipment to take care of you. To see machines which handle this type of cartoning, please visit below.

Kliklok ACE

The Kliklok ACE topload carton former is our most advanced carton forming system. The Kliklok ACE topload carton former is our most advanced carton forming system. Based on input from our customers around the world, the ACE was designed and built for ergonomics, access, reduced maintenance, and future-proof speeds, up to 240 cpm.

Your benefits at a glance

  • Ergonomic low-level carton hopper
  • 100% positive carton control
  • Ultimate forming versatility with lock, glue or ultrasonic
  • Scalable small footprint
  • 1, 2, 3 heads on one machine
  • Outstanding accessibility
  • Integrated servo drives for plug-and-play maintenance
  •

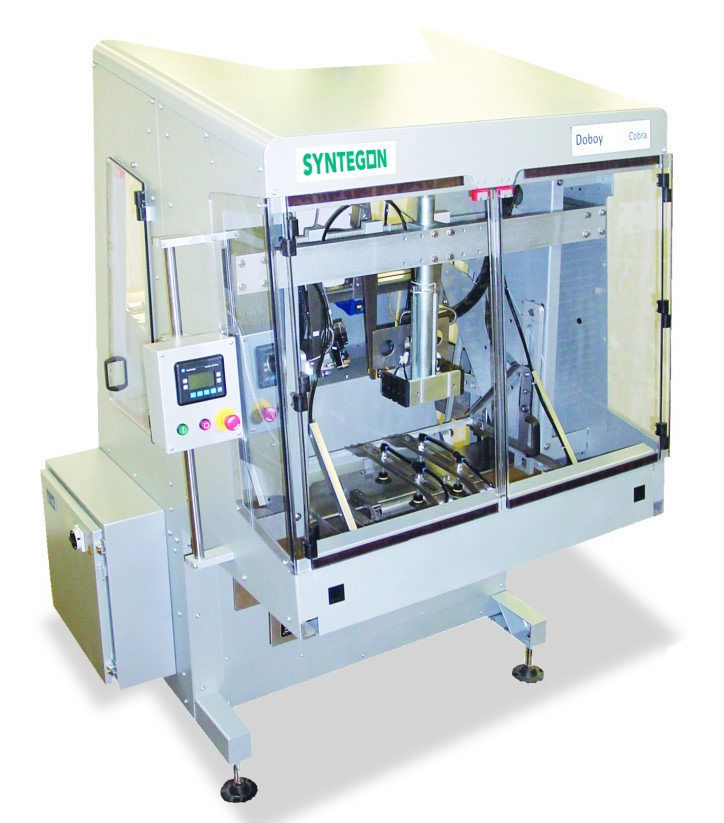

    Cobra Carton Former
    for speeds up to 30 cartons per minute

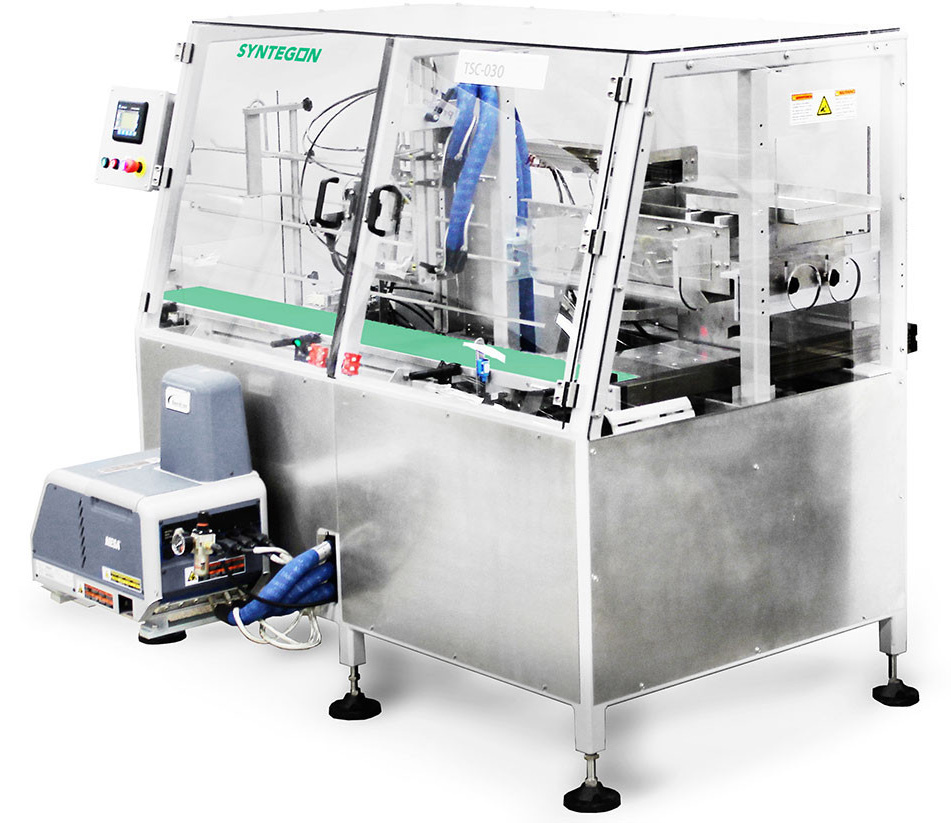

    Doboy TSC-030 Tri- Seal Carton Closer
    for speeds up to 30 cartons per minute

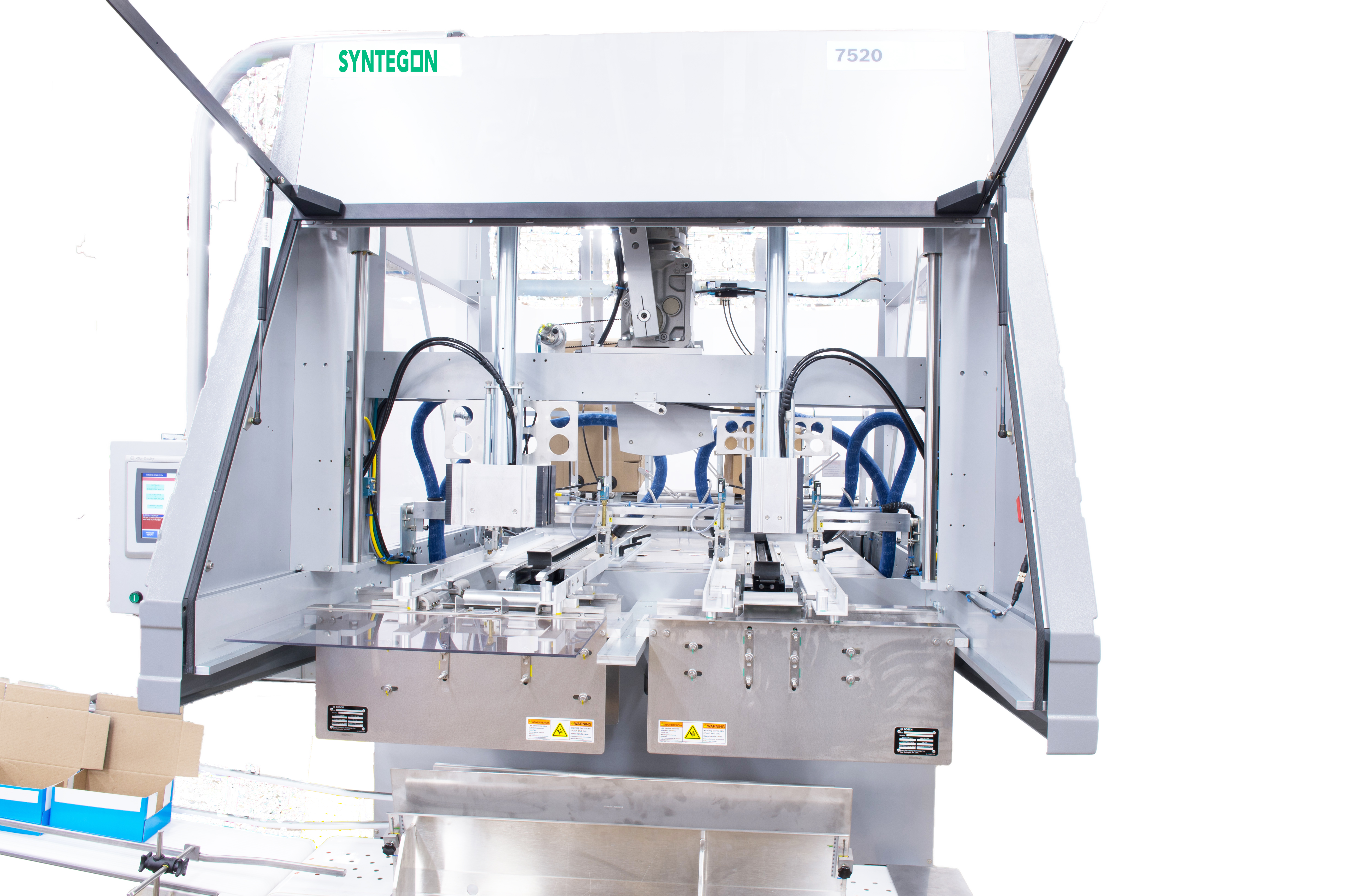

    7510/7520 Carton Formers
    for speeds up to 70 cartons per minute

    Machine Types: Side Load

    Carton Styles: Side/End Load

    There are many other end load style blanks we have worked with over the years. If you don't see your desired box type, please contact us. Chances are we have the equipment to take care of you. To see machines which handle this type of cartoning, please visit below.

    Kliklok Enterprise

    The Kliklok Enterprise features the fastest rotary carton feeder in the industry, and can package a wide variety of foods: frozen entrees, waffles, meats, pies, cakes, etc., at speeds up to 325 cartons per minute. It is designed to accommodate an optional overhead confiner for bag-in-box applications. Its modular design allows a variety of product conveying systems, including an article bucket infeed.

    The Enterprise was designed with centerlining capabilities for “set it and forget it” predictable and consistent performance. Product and equipment changeovers are faster, and both unplanned downtime and material waste are reduced.

  • Modular, flexible-configuration IP65 frame
  • Fastest rotary carton feeder available
  • Easy operation with Insight® touchscreen HMI
  • Centerline design for maximum uptime
  • Barrel cam inserter with gentle insertion angle
  • Your benefits at a glance

  • Speeds up to 325 cpm (9” pitch)
  • Fastest rotary carton feeder in the industry
  • Easy-to-use Insight® touchscreen HMI
  • Sanitary stainless steel design (IP65)
  • Optional overhead confiner
  • Optional article bucket infeed

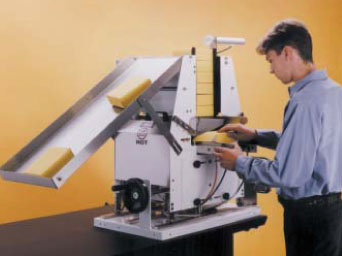

  • Econocorp Twin Seal
    for speeds up to 30 cartons per minute



       E-2000
    Econocorp E-2000 Automatic Cartoner
    for speeds up to 20 per minute
    Spartan
    Econocorp Sparton Automatic Cartoner
    for speeds up to 40 per minute

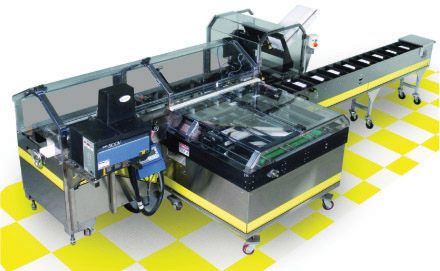

    Econocorp Pegasus Automatic Cartoner
    for speeds up to 120 per minute
